78Pin D-SUB Connector 78 Way Straight PCB Female HS DSUB Connector

Product Categories

Dongguan Fuyconn Electronics Co,.LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

78Pin D-SUB Connector 78 Way Straight PCB Female HS DSUB Connector

Name: 78Pin DSUB Connector 78 Way Straight PCB Female HS DSUB Connector
Brand: FUYCONN
Price: 1 USD

Buy cheap 78Pin D-SUB Connector 78 Way Straight PCB Female HS DSUB Connector product

Product Line : High Density

Gender : Female

Type : Straight PCB

Product Name : D-sub Connectors

Place of Origin : China

Brand Name : FUYCONN

Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004

Model Number : FUYHS1008

MOQ : 1000pcs

Price : Negotiable

Packaging Details : Vacuum Tray + Carton

Delivery Time : 7-10 days

Payment Terms : T/T or Paypal

Supply Ability : 1 million/ month

Connector Style : Receptacle

Number of Terminal : 78 pin

Contact Now

78Pin D-SUB Connector 78 Way Straight PCB Female HS DSUB Connector

D-type connectors most commonly consist of two and sometimes more parallel rows of connections. The connectors have a D-format metal shell that provides mechanical strength and limited screening - the metal shells of the plug and socket make contact to provide screening. Panel mounting connectors are typically secured to the panel using nuts that have an additional thread allowing the mating connector to be secured to prevent working loose. Free connectors can have backshells that provide screening and can be connected to the cable screen, or if plastic, provide protection and strain relief.

Product Specifications

Product Name:	D-SUB Connector
Product Line:	D SUB High Density Connector
No. of Pin:	78pin
Material:	PBT
Contact Type:	PCB Straight
Connector Type:	PCB

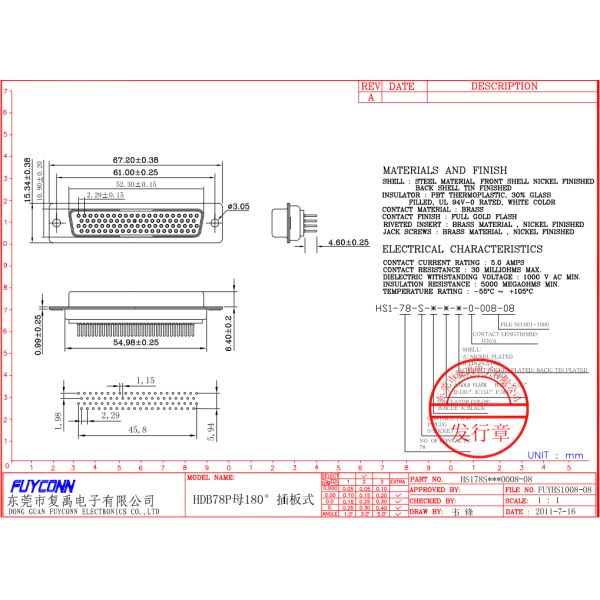

Data Sheet

78Pin D-SUB Connector 78 Way Straight PCB Female HS DSUB Connector

Applications

The D-type connector has been used in many applications as a multi-way connector, but it is probably most widely known as the connector used for RS-232 serial links. In fact, the D-type connector was used for the serial link on most computers for many years, and today variations of D-type connectors are still found on most computers.

D-sub or D-subminiature connectors are common types of electrical components typically used in computing to help form connections on a circuit board.
